Mecanum

am-4301_ULTIMATE_GOAL_Full_Game_Set_and_Field_2021-Jun-10_05-23-51PM-000_CustomizedView333

The trusty mecanum drivetrain is part of the holonomic drivetrain group allowing the robot to move in any directions ("omni-directional") . Its chassisusually consists of 4 mecanum wheels; each powered separately by one motor.

Each wheel has special rollers that are mounted at a 45 degree angle to its axis of rotation. This feature allows the robot to strafe, a key advantage of the mecanum drivetrain. In other words, it gives the robot the capability to “move side to side without turning”.

However, this "cool" feature has its downfall. Since the rollers are angled at a 45 degree angle when the wheels rotate to move, the forces the wheels exert effectively cancel each other out. As a result, wheel slippage is often resulted making this the primary disadvantage of a mecanum drivetrain. Trading chassis' pushing power with maneuverability makes it very vulnerable to defend against other robot.  For more info.

FTC 7591 Symmtery mec_pto_speed_shift.jpg

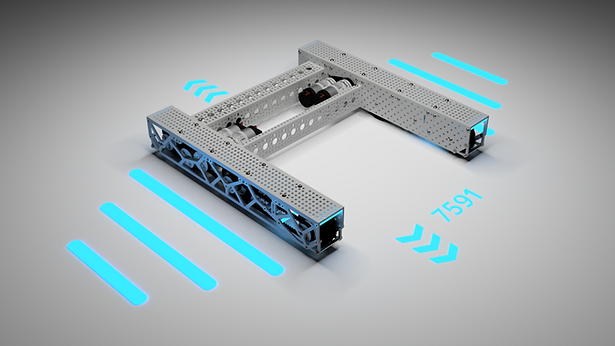

FTC 7591 Symmtery mec_render_iso.png
FTC 7244 Out of The Box mec_rr3_cantilever.jpg
FTC 9614 Athul mec_locking_render.png
FTC 12384 Checkmate mec_rr3_bevel_motor.jpg
FTC 16379 Veer mec_gear_power_40mm_pod_render_iso.png
FTC 16439 mec_canti.png
FTC 16537 Micheal mec_cantilever_render.png
FTC 16750 Tristan mec_in_pod_motor.png
FTC 17077 Nate mec_internal.png
FTC 18246 Andrew mec_smol_boi.png
FTC 18253 Beach Bots mec_test_bot_render.png
FTC 18253 BeachBots mec_ug.png
